The Importance of Accurate and Updated As-Builts
Every construction project ends with a stack of drawings that supposedly show what was built. The problem? Those drawings often bear little resemblance to reality.
Original plans get modified constantly during construction design changes, unexpected site conditions, material substitutions, value engineering decisions. If those changes aren't captured in your final documentation, you're left with a fiction masquerading as a record.
The consequences show up years later when a renovation crew hits an unmarked utility line, a facility manager can't locate a shut-off valve during an emergency, or an insurance claim gets complicated because the documentation doesn't match the building.
What As-Built Documentation Actually Captures
As-built documentation represents the final, real-world state of a structure. It records everything that changed from the original design: relocated utilities, modified structural elements, adjusted equipment positions, and material substitutions.
Think of it as the difference between a recipe and what actually came out of the kitchen. The recipe says one thing; the final dish might be slightly different. For a building that will stand for decades and undergo multiple renovations, those differences matter enormously.
Comprehensive as-builts typically include:
- Updated floor plans and site drawings

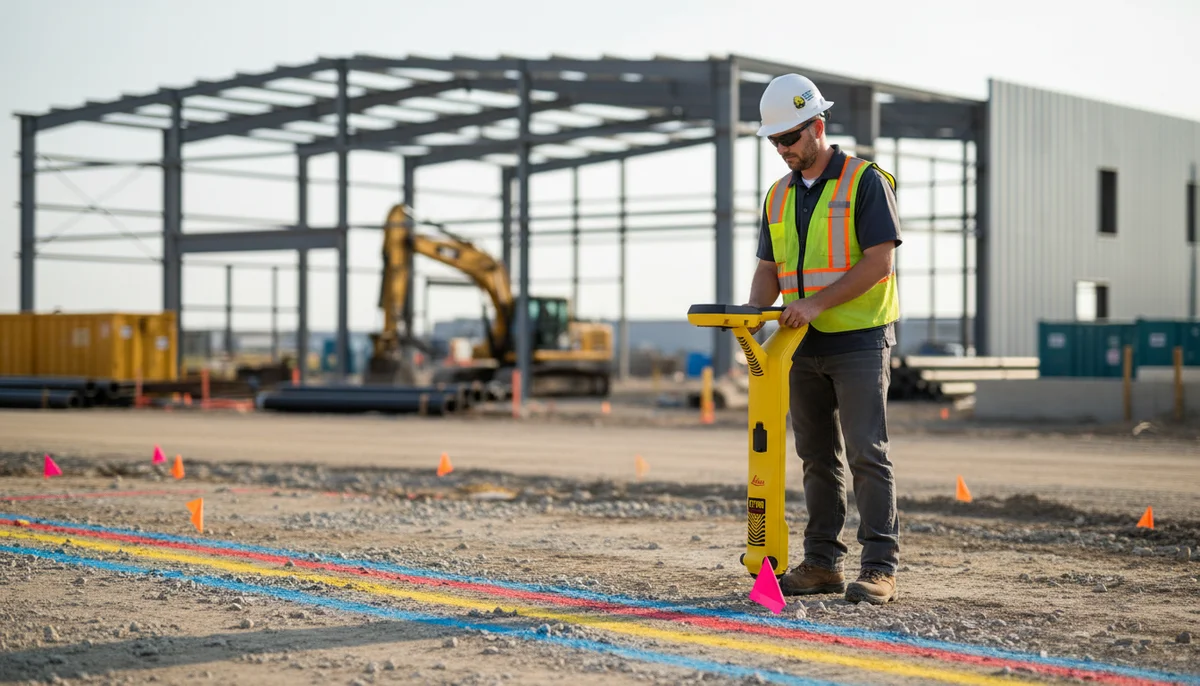

- Exact locations of underground utilities
- Structural modifications and reinforcements
- HVAC, plumbing, and electrical routing
- Equipment specifications and positions
- Material records and change documentation
Why Outdated Documentation Costs More Than You Think
Facility managers working with inaccurate as-builts face a cascade of problems. Maintenance crews waste hours searching for components that aren't where the drawings say they should be. Renovation projects hit unexpected obstacles that blow budgets and timelines. Emergency responders can't quickly locate critical infrastructure during crises.
The financial impact extends beyond direct costs. When you don't know what's underground, every excavation becomes a gamble. When you can't verify what's behind a wall, every renovation requires exploratory demolition. These inefficiencies compound across a facility's lifecycle.
Consider a typical scenario: a facility needs to expand its electrical capacity. Without accurate as-builts, the project team must either conduct extensive field investigation to locate existing infrastructure or proceed with incomplete information and hope for the best. Neither option is ideal.
The Legal and Compliance Dimension
As-built documentation serves essential legal functions beyond operational convenience. These records prove adherence to building codes, document contractor work completion, and support insurance claims when incidents occur.
In many jurisdictions, as-built documentation is legally required at project closeout. Beyond regulatory requirements, these documents become contractually binding records. When disputes arise and they often do accurate as-builts provide the authoritative record of what was actually constructed.
Regulatory compliance verification becomes nearly impossible without current documentation. Building inspectors, insurance adjusters, and safety auditors all rely on as-builts to confirm that facilities meet applicable standards.
Modern Approaches to As-Built Documentation
Traditional as-built creation relied on manual redlining of original drawings a process prone to omissions, interpretation errors, and fading annotations. Today's technology offers more reliable alternatives.
3D Laser Scanning (LiDAR): Creates precise point cloud data of existing conditions, capturing measurements accurate to 2-4mm. The resulting data integrates directly into CAD platforms for 2D drawings or 3D models.
Digital Twins: Virtual replicas that mirror physical buildings in both structure and operation. These tools enable ongoing facility management, sustainability planning, and predictive maintenance.
BIM Integration: As-built data flows directly into Building Information Modeling platforms, creating living documents that can be updated throughout a facility's lifecycle.
The shift toward digital documentation addresses a persistent problem with paper-based as-builts: they're difficult to update. A digital model can incorporate changes as they occur, maintaining accuracy over time rather than degrading into irrelevance.
Best Practices for Maintaining As-Built Accuracy
Creating accurate as-builts at project completion is only the first step. Maintaining that accuracy requires ongoing attention:
Establish update protocols: Define triggers for as-built updates any modification exceeding a specified scope, any utility work, any structural changes.
Standardize formats: Ensure all documentation follows consistent conventions so future users can interpret the information without guessing.
Capture field verification: Don't assume installation matches design. Verify actual conditions through scanning or measurement before finalizing documentation.
Conduct regular audits: Review documentation periodically against actual conditions, especially for critical infrastructure like utilities and safety systems.
Enable accessibility: Documentation that exists but can't be found provides no value. Use platforms that make as-builts accessible to everyone who needs them, across devices, around the clock.
The ROI of Getting It Right
Accurate as-built documentation costs more upfront than hastily-compiled closeout drawings. That investment pays returns across the facility's entire lifecycle.
Maintenance planning becomes more efficient when technicians know exactly where components are located. Renovation projects proceed faster when designers have reliable existing condition data. Emergency response improves when responders can immediately access infrastructure locations.
Perhaps most importantly, accurate as-builts transfer knowledge between teams. Staff turnover is inevitable. When institutional knowledge walks out the door with departing employees, documented facilities retain their operational continuity.
Frequently Asked Questions
What should be included in as-built documentation?
Comprehensive as-builts include final drawings showing all construction modifications, specifications for installed equipment and materials, utility locations with depths and routings, and documentation of any changes from original design plans.
How often should as-builts be updated?
As-builts should be updated whenever significant modifications occur additions, renovations, utility work, or equipment changes. Many facilities conduct annual audits to verify documentation accuracy for critical systems.
What's the difference between design drawings and as-builts?
Design drawings show intended construction; as-builts show actual construction. Design documents represent what was planned, while as-built documentation captures the final, real-world configuration including all changes made during construction.
Why do as-builts become inaccurate over time?
Facilities change continuously equipment replacements, utility modifications, tenant improvements, emergency repairs. Without protocols for updating documentation after each change, as-builts quickly diverge from reality.
