Introduction
What if you could invest less than half a percent of your construction budget and save nearly 2% on total project costs? It sounds too good to be true, but Federal Highway Administration research proves it's not only possible - it's repeatable.
Across 71 major construction projects totaling over $1 billion in combined value, the FHWA documented that every dollar spent on Subsurface Utility Engineering (SUE) returned $4.62 in savings. That's a 462% return on investment for gathering accurate underground utility data before breaking ground.
With the average utility strike costing $56,000 and causing 6-8 weeks of downtime, the case for SUE has never been clearer. This article breaks down the FHWA study findings, explores state-by-state ROI variations, and explains how Midwest contractors and municipalities can leverage Quality Level A and B data to protect budgets and timelines.
The FHWA Study That Changed Infrastructure Planning
In 2000, the Federal Highway Administration partnered with Purdue University to answer a critical question: Does investing in Subsurface Utility Engineering actually save money, or is it just another line item eating into construction budgets?
The research team analyzed 71 highway construction projects across four states - North Carolina, Ohio, Texas, and a fourth undisclosed state - with a combined construction value exceeding $1 billion. Projects ranged from small urban improvements to major interstate expansions.
The results were unambiguous:
- $4.62 saved for every $1 spent on SUE - The median ROI across all projects
- SUE costs represented less than 0.5% of total construction budgets - A minimal upfront investment
- Construction savings averaged 1.9% of total project costs - Nearly four times the SUE investment
- Only 3 of 71 projects showed negative returns - A 96% success rate
- Peak ROI reached $206 on one North Carolina project - Every dollar invested returned over two hundred
These aren't theoretical projections. They're documented outcomes from real infrastructure projects where accurate subsurface utility data prevented costly mistakes, change orders, and project delays.
Understanding SUE Quality Levels
Not all utility data is created equal. The American Society of Civil Engineers (ASCE) defines four quality levels for subsurface utility information, each providing different levels of accuracy and reliability:
Quality Level D (Records Research) - Desktop review of existing utility records, as-built drawings, and historical documents. Accuracy depends entirely on record quality and currency. Lowest cost, lowest confidence.
Quality Level C (Surface Survey) - Field surveys of visible utility features like manholes, valve boxes, and meter locations. Documents aboveground evidence but doesn't verify underground positions.

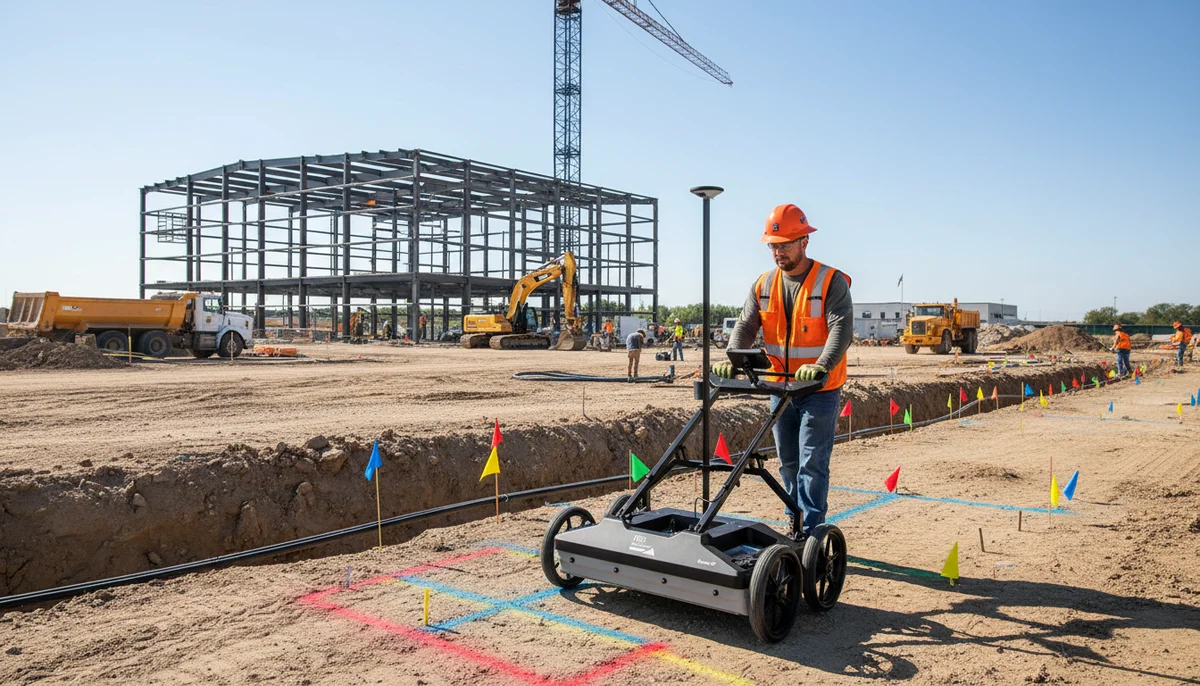

Quality Level B (Geophysical Investigation) - Non-destructive detection using Ground Penetrating Radar (GPR), electromagnetic locators, and other geophysical technologies. Provides horizontal positioning and depth estimates without excavation. This is where MSR specializes.
Quality Level A (Test Holes/Vacuum Excavation) - Physical exposure of utilities through hand digging or vacuum excavation at critical locations. Provides exact horizontal and vertical positioning with visual confirmation. Highest accuracy, typically reserved for design-critical areas.
The FHWA study specifically examined Quality Level A and B data - the combination of geophysical investigation and selective test holes that provides reliable utility positions without extensive excavation.
State-by-State ROI Variations
While the overall study showed a $4.62 median ROI, individual states demonstrated significant variation based on project types, subsurface complexity, and existing utility infrastructure:
North Carolina: $6.63 return per dollar
The highest state-level ROI in the study. North Carolina's strong performance reflected dense urban utility corridors and aging infrastructure where conflicts were common without SUE data. One outlier project achieved the study's peak $206 ROI after SUE prevented a major conflict with a previously unmapped water transmission main.
Ohio: $5.21 return per dollar
Ohio's above-average ROI correlated with projects in older industrial cities where utility records were incomplete or nonexistent. The state's mix of highway expansion and urban reconstruction created high potential for utility conflicts.
Texas: $4.27 return per dollar
Despite showing slightly lower ROI than other states, Texas projects still demonstrated substantial savings. The state's newer infrastructure and better record-keeping reduced conflict potential, yet SUE remained cost-effective even in less complex environments.
These variations reveal an important principle: SUE provides value across all project types, but delivers exceptional returns in complex urban environments with aging infrastructure - exactly the conditions common throughout the Midwest.
The $56,000 Problem: Utility Strike Economics
Understanding the positive ROI of SUE requires examining the negative costs it prevents. Utility strikes aren't just inconvenient - they're budget killers that cascade through entire project schedules.
Current strike economics paint a stark picture:
- $56,000 average cost per utility strike - Includes emergency repairs, project delays, equipment damage, legal liability, and regulatory penalties (2021 Infrastructure Protection Coalition study)
- $62 billion annual industry loss - Total cost of 192,745 documented public utility strikes across the construction sector
- $100 billion when including private utilities - Private utility lines represent 60% of all underground infrastructure but aren't covered by 811 services
- 94% of strikes attributed to inaccurate or missing location data - The Common Ground Alliance DIRT Report confirms inadequate subsurface information as the primary cause
These aren't abstract statistics. Every general contractor reading this article has either experienced a utility strike firsthand or knows someone who has. The eight-week work stoppage. The emergency utility repairs billed at overtime rates. The change orders that obliterate profit margins. The calls to project owners explaining why the schedule just slipped another month.
SUE eliminates these scenarios by providing accurate utility positions before excavation begins. When your crew knows exactly where the gas main runs and how deep the fiber optic conduit sits, strikes become preventable accidents rather than inevitable risks.
Why Less Than 0.5% Investment Generates 1.9% Savings
The FHWA study's most compelling finding wasn't just the $4.62 ROI - it was how little SUE costs relative to total construction budgets.
On a typical $5 million highway improvement project:
- SUE investment: $25,000 (0.5% of budget)
- Average savings: $95,000 (1.9% of budget)
- Net benefit: $70,000
On a $20 million municipal infrastructure project:
- SUE investment: $100,000 (0.5% of budget)
- Average savings: $380,000 (1.9% of budget)
- Net benefit: $280,000
The math becomes even more compelling when factoring in avoided costs beyond the direct construction budget: litigation expenses from third-party utility damage, regulatory fines for environmental releases, reputation damage from project delays, and insurance premium increases following safety incidents.
SUE's cost efficiency stems from preventing expensive problems rather than fixing them. An hour of GPR scanning costs significantly less than an hour of excavator downtime, emergency utility repairs, and project remobilization after a strike.
The 2022 ASCE Standards Update: Raising the Bar
While the FHWA's foundational study dates to 2000, the SUE industry hasn't stood still. In 2022, the American Society of Civil Engineers released ASCE/UESI/CI 38-22, the first major update to SUE standards in two decades.
Key improvements in ASCE 38-22:
- Enhanced utility attribute collection - Standardized protocols for documenting utility material, size, depth, condition, and owner information
- 3D utility modeling integration - Guidance on incorporating subsurface utility data into Building Information Modeling (BIM) and civil design platforms
- Advanced geophysical technique recognition - Formal acknowledgment of multi-sensor GPR arrays, electromagnetic induction, and other emerging detection technologies
- Quality assurance protocols - Stronger requirements for data validation, accuracy tolerances, and deliverable formats
The companion standard ASCE 75-22 addresses a persistent industry problem: newly installed utilities that lack accurate location records. By establishing protocols for recording and exchanging utility infrastructure data during construction, ASCE 75-22 helps prevent today's new installations from becoming tomorrow's unknown utilities.
These updated standards reinforce the principles proven in the FHWA study while acknowledging technological advances that make SUE even more accurate and cost-effective than when the original research was conducted.
Modern SUE Technology: 99.8% Accuracy Standards
The SUE services available today far exceed what was possible during the FHWA's 2000 study. Advances in Ground Penetrating Radar, electromagnetic detection, and GPS positioning have pushed accuracy rates to unprecedented levels.
Current technology capabilities:
- 99.8% utility locating accuracy - Industry-leading providers using properly applied geophysical methods and SIM (Subsurface Investigation Methodology) certification
- Concrete scanning precision of +/- 1/4 inch - Critical for accurate rebar, conduit, and post-tension cable location before core drilling or cutting
- Real-time 3D visualization - Advanced GPR systems generate immediate three-dimensional subsurface models during field surveys
- Multi-frequency analysis - Modern GPR units simultaneously process multiple frequency ranges, improving detection across varied soil conditions and utility depths
Midwest Site Reconnaissance deploys this advanced technology across Indiana, Illinois, Michigan, Ohio, Wisconsin, Iowa, Minnesota, and Missouri. Our SIM-certified technicians combine GPR, electromagnetic locators, and utility records research to deliver Quality Level B data that meets or exceeds ASCE 38-22 standards.
When projects require Quality Level A verification through test holes or vacuum excavation, we coordinate with qualified excavation contractors to provide complete SUE services at any quality level your design or construction phase demands.
Who Benefits Most from SUE Investment
While the FHWA study focused on highway construction, the ROI principles apply across the entire infrastructure sector. Certain stakeholders face particularly acute risks from utility conflicts and stand to gain the most from SUE:
General Contractors bear primary liability for utility strikes under most construction contracts. A single gas line strike can trigger project shutdowns, emergency response costs, regulatory investigations, and litigation that dwarf the profit margin on an entire project. SUE shifts contractors from reactive damage control to proactive risk elimination.
Civil Engineers designing infrastructure improvements need reliable subsurface utility information to avoid conflicts during the design phase - not after construction begins. Quality Level B data integrated during 30% design reviews prevents costly redesigns and change orders when previously unknown utilities appear.
Municipalities managing public infrastructure face budget constraints that make cost overruns particularly painful. Council members and taxpayers expect projects to finish on time and on budget. SUE provides the data foundation for accurate cost estimation and realistic scheduling.
Small Contractors often operate on tighter margins than large firms and lack the financial reserves to absorb a major utility strike. An $80,000 strike on a $400,000 project can threaten business viability. For smaller contractors, SUE isn't just good practice - it's essential risk management.
The Billion-Dollar National Opportunity
The FHWA study concluded with a provocative projection: if SUE were systematically implemented across all qualifying infrastructure projects nationwide, the construction industry could save approximately $1 billion annually (adjusted from 1998 baseline).
Two decades later, that estimate appears conservative given:
- Increased construction costs and project complexity
- Aging utility infrastructure across the Midwest and nationwide
- Denser urban subsurface environments as cities expand and upgrade
- Stricter liability standards and regulatory oversight
Yet systematic SUE adoption remains inconsistent. Many projects still rely on outdated records and reactive approaches, accepting utility strikes as inevitable rather than preventable.
This represents both a challenge and an opportunity for forward-thinking contractors and municipalities. Those who embrace SUE as standard practice gain competitive advantages through:
- More accurate bid estimates with reduced contingency padding
- Faster project delivery without utility conflict delays
- Enhanced safety records that reduce insurance costs
- Stronger client relationships built on reliability and transparency
Frequently Asked Questions
How much does Subsurface Utility Engineering cost for a typical project?
SUE typically represents 0.3% to 0.8% of total construction costs, depending on project size, site complexity, and required quality levels. A $3 million project might invest $15,000-24,000 in Quality Level B GPR investigation. The FHWA study showed this minimal investment returns an average of $4.62 for every dollar spent through avoided utility strikes, design conflicts, and change orders.
What's the difference between calling 811 and hiring a SUE firm?
811 services locate public utilities (electric, gas, water, sewer, telecom) at no cost and are legally required before excavation. However, 811 doesn't provide depth measurements, digital mapping, or coverage of private utilities - which represent 60% of all underground infrastructure. SUE firms like Midwest Site Reconnaissance provide comprehensive detection of all utilities (public and private), accurate depth data, and deliverable documentation integrated into project plans.
Which construction projects benefit most from SUE investment?
The highest ROI occurs in dense urban areas with aging infrastructure, complex utility corridors, and incomplete records - common conditions across Midwest cities. Highway improvements, downtown redevelopment, municipal utility upgrades, and institutional campus projects show particularly strong returns. However, even new development sites benefit from SUE when underground utilities from adjacent properties cross the site or when unknowns exist in previously undeveloped areas.
Can SUE detect all types of underground utilities?
Ground Penetrating Radar and electromagnetic locators successfully detect most metallic utilities (gas, water, electric, telecom) and many non-metallic utilities (PVC, fiber optic, concrete, clay). Detection success depends on soil conditions, utility depth, and material composition. SIM-certified technicians use multiple geophysical methods to maximize detection probability. For critical design areas requiring 100% certainty, Quality Level A test holes provide visual confirmation.
How quickly can SUE services be mobilized for a project?
Midwest Site Reconnaissance typically schedules GPR investigations within 3-5 business days of request, with same-day emergency services available for urgent situations. Field investigations for most projects complete in 1-2 days, with digital deliverables provided within 24 hours. This rapid turnaround supports tight project schedules and eliminates SUE as a critical path delay.
Conclusion
Twenty-five years of research and hundreds of infrastructure projects confirm a simple truth: accurate subsurface utility information isn't an optional luxury - it's a proven cost-savings strategy with documented 462% average returns.
The Federal Highway Administration's landmark study demonstrated that Quality Level A and B SUE data prevents the $56,000 utility strikes that plague construction projects, eliminates change orders from unexpected conflicts, and enables realistic scheduling based on actual site conditions rather than assumptions.
For Midwest contractors, engineers, and municipalities facing aging infrastructure and dense utility corridors, SUE provides a competitive advantage through better bids, faster delivery, and enhanced safety performance. When less than half a percent of your construction budget can save nearly 2% in project costs, the investment question answers itself.
