The Hidden Infrastructure Crisis: Why Your Utility Locator Can't Find Half Your Lines

The Hidden Infrastructure Crisis: Why Your Utility Locator Can't Find Half Your Lines

The Hidden Infrastructure Crisis: Why Your Utility Locator Can't Find Half Your Lines

Your metal detector found 3 lines. There are actually 7. The other 4 are plastic, and your excavator is about to hit one.

This scenario plays out on job sites across the Midwest every day. According to the Common Ground Alliance's DIRT Report, 94% of utility strikes trace back to inaccurate or missing location data. The culprit isn't careless contractors or lazy locators. It's a fundamental technology gap that most project managers don't even know exists.

The Non-Metallic Infrastructure Boom

Here's what's changed: plastic is replacing metal underground.

Water mains, gas distribution lines, storm drains, and telecommunications conduits are increasingly installed using PVC, HDPE, and other non-conductive materials. The reasons make sense: plastic doesn't corrode, costs less to install, and lasts longer than metal alternatives.

But this shift creates a massive problem. The standard electromagnetic (EM) locators that 811 services and most utility locators rely on work by detecting the electromagnetic field generated by conductive materials. No metal means no signal. It's that simple.

According to research from the Chinese Journal of Mechanical Engineering, EM locators are "impossible to use for detecting non-conductive lines." And with private utilities representing over 60% of all underground lines in the United States, you're looking at a growing blind spot that standard locate methods simply cannot address.

Why 811 Isn't Enough

Let's be clear: calling 811 before you dig isn't optional. It's the law, and it's a critical first step. The public utility locate system works remarkably well for what it covers, marking 99.47% of public utilities accurately.

But 811 has three significant limitations:

  • No private utility coverage: That 60% of lines on private property, campuses, and industrial facilities? Not included.
  • No depth information: You'll know a line exists but not how deep it runs.
  • EM-only detection: Public locators typically use electromagnetic methods, missing non-metallic infrastructure entirely.

The 2022 DIRT Report documented a 12.35% increase in utility damages per million dollars of construction spending. The root causes break down like this:

  • 67% from locator errors (often meaning the technology couldn't detect the line)
  • 14% from missing markings
  • 10% from incorrect maps
  • 3% from abandoned facilities no one knew existed

The financial impact is staggering. The average utility strike costs $56,000 and triggers 6-8 weeks of project delays. Extrapolated across all U.S. incidents, including unreported strikes, annual damages exceed $100 billion.

How GPR Fills the Detection Gap

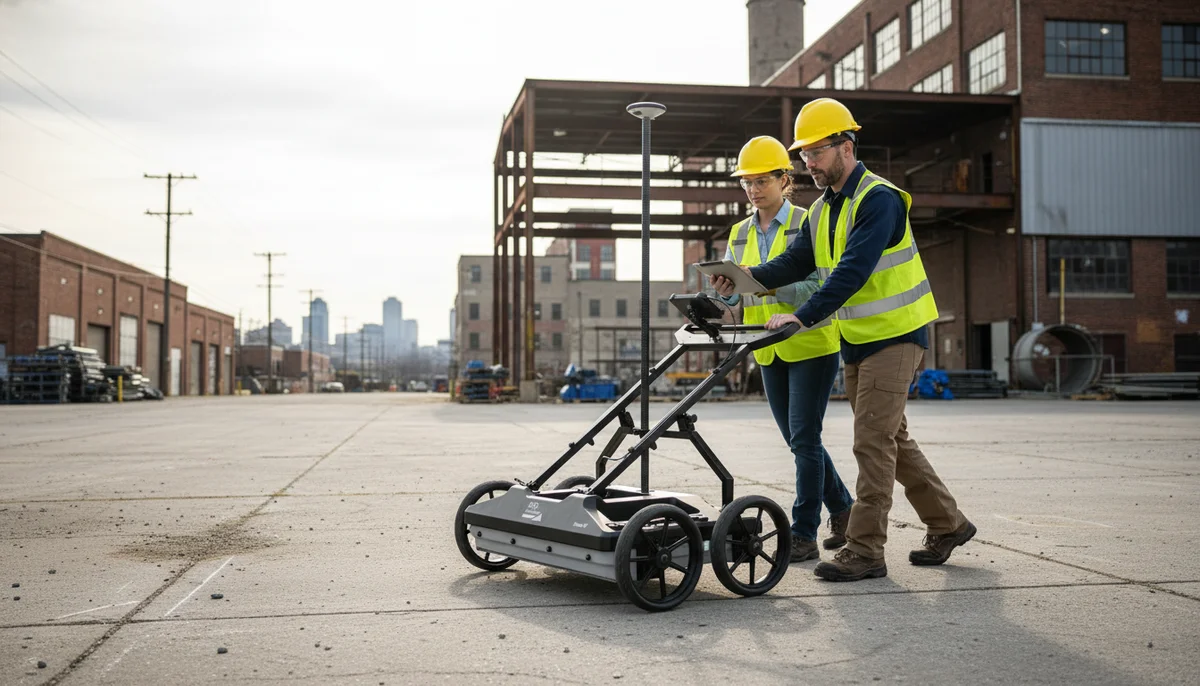

Ground Penetrating Radar operates on an entirely different principle than EM locating. Instead of detecting electromagnetic fields from conductive materials, GPR transmits radar pulses into the ground and analyzes the reflected signals.

This means GPR can detect utilities regardless of material type:

  • Plastic water and gas lines: Invisible to EM, visible to GPR
  • Clay and concrete sewer pipes: Common in older infrastructure, undetectable by EM
  • Fiber optic conduit: Non-metallic telecommunications infrastructure
  • Abandoned lines: That 3% of damages from forgotten utilities? GPR finds them

The U.S. NDT (Non-Destructive Testing) market reflects growing recognition of this capability. The market reached $5.3 billion in 2025 and is projected to hit $8.5 billion by 2032. Companies are investing in advanced detection because the cost of not knowing what's underground keeps climbing.

The Multi-Method Approach

Here's what experienced utility locators understand: no single technology catches everything.

EM locating excels at tracing metallic utilities, especially when you can connect directly to the line. GPR provides the non-metallic detection that EM can't deliver. Used together, they create comprehensive coverage that neither achieves alone.

A recent case study illustrates the ROI. Garney Construction implemented real-time GPR technology across a 9-month project. The results:

  • 200 utility strikes prevented
  • 1,000 hours of downtime avoided
  • $1.55 million in savings
  • 761% return on investment

That's not a typo. For every dollar spent on advanced detection, they saved over seven dollars in avoided damages and delays.

What This Means for Your Next Project

The Infrastructure Investment and Jobs Act (IIJA) is accelerating the modernization of underground systems. New installations increasingly use non-metallic materials. Meanwhile, many as-builts don't even record material type, meaning you can't know from records alone whether your site has undetectable lines.

The locate gap is widening. Every year, more plastic goes in the ground while detection practices stay the same.

When planning excavation work, consider these steps:

1. Call 811 first: It's required and covers public utilities 2. Hire a private locator that uses both EM and GPR: This combination catches what either method alone would miss 3. Request digital deliverables: Paper markings fade; GPS-referenced data persists 4. Update your as-builts: Document what you find for future projects

At Midwest Site Reconnaissance, we use a multi-method approach combining electromagnetic locating with ground penetrating radar on every project. Our AI-assisted GPR interpretation helps identify anomalies that manual review might miss, and we deliver same-day digital documentation so you're not waiting on reports while your crew sits idle.

The Bottom Line

Your traditional utility locate found 3 lines. There are actually 7. The question isn't whether you'll hit one of those invisible plastic lines eventually. It's whether you'll invest in detection technology that can actually see them before you do.

The math is straightforward: $56,000 average strike cost versus comprehensive detection that costs a fraction of that. Factor in the 6-8 weeks of potential delays, the safety risks, and the liability exposure, and the decision makes itself.

---

Frequently Asked Questions

Can GPR find all utilities that EM locators miss?

GPR detects utilities based on the contrast between the pipe material and surrounding soil, not conductivity. It excels at finding plastic, clay, and concrete pipes that EM cannot detect. However, soil conditions, moisture levels, and depth affect GPR performance. That's why a multi-method approach using both technologies provides the most complete picture.

How deep can GPR detect utilities?

Depth capability varies based on antenna frequency and soil conditions. Standard utility-locating GPR typically reaches 8-10 feet in favorable conditions. Clay soils and high moisture can reduce penetration depth, while sandy or dry conditions often allow deeper detection.

What's the difference between public and private utility locates?

Public utility locates through 811 cover utilities owned by utility companies in public rights-of-way. Private locates cover everything else: lines on private property, campus utilities, industrial facilities, and any infrastructure installed by property owners. Since private utilities represent over 60% of all underground lines, comprehensive detection requires both services.

How long does a utility locate take?

Timing depends on site size and complexity. Most commercial and industrial sites can be completed in a single day, with digital deliverables available the same day. Larger projects like pipeline corridors or campus-wide surveys may require multiple days of field work.
