Ground Penetrating Radar: Complete Guide to GPR Strengths & Limitations

Before you break ground on your next project, there's one question that could save you thousands of dollars and weeks of delays: what's actually down there? Ground penetrating radar (GPR) has become the go-to technology for answering that question without ever picking up a shovel. But like any tool, it has its sweet spots—and its blind spots.

Understanding both what GPR does well and where it falls short will help you make smarter decisions about when to use it, what to expect from it, and when you might need complementary technologies.

What GPR Does Best

Detects Both Metallic and Non-Metallic Objects

Traditional electromagnetic (EM) locating excels at finding metallic utilities but struggles with non-metallic materials. GPR utility locating fills that gap. It detects:

• Metallic utilities: electrical conduit, gas lines, water mains
• Non-metallic utilities: PVC pipes, fiber optic conduit, clay drainage tiles
• Structural elements: rebar, post-tension cables, voids in concrete
• Other subsurface features: underground storage tanks, unmarked graves, archaeological artifacts

This versatility makes GPR invaluable on projects where you need to locate the full picture of what's buried below. For comprehensive utility detection across the Midwest, contact Midwest Site Recon for same-day digital deliverables.

Non-Destructive and Safe

GPR emits radio waves—not X-rays or harmful radiation. You can scan occupied buildings, active construction sites, and sensitive environments without evacuation or safety concerns. The technology has largely replaced X-ray imaging for concrete scanning because there's no radiation exposure risk for workers nearby.

The scan leaves no marks, no holes, no damage. You get answers without consequences.

Real-Time Results

Unlike some geophysical methods that require hours of post-processing, GPR provides immediate feedback. Experienced technicians interpret the data on-site, marking utility locations directly on the surface. For fast-moving construction schedules, this speed matters.

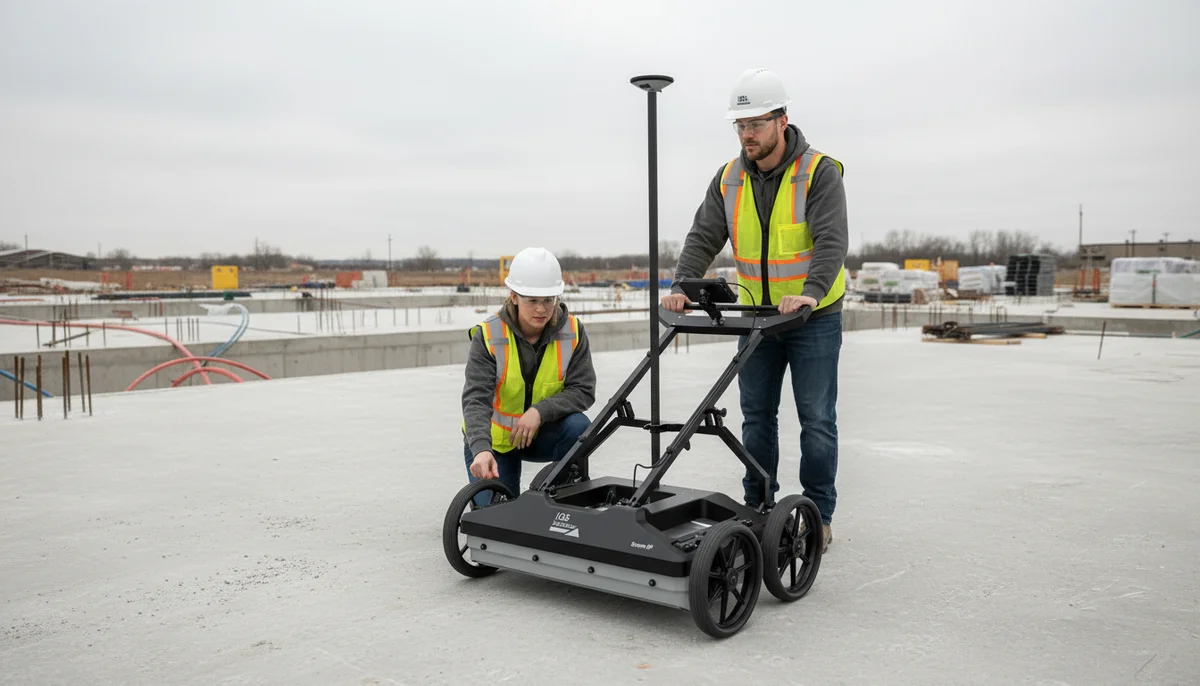

Modern systems like GSSI's UtilityScan use 400-900 MHz antennas with real-time data visualization, allowing Project Managers to flag findings and make decisions without waiting for lab analysis. Midwest Site Recon delivers same-day digital reports for all GPR services.

High Resolution for Shallow Targets

When scanning concrete or investigating the first few feet of soil, GPR delivers impressive detail. Higher frequency antennas (800+ MHz) can distinguish between individual pieces of rebar, identify post-tension cable locations, and pinpoint conduit runs with centimeter-level accuracy.

For concrete scanning specifically, GPR typically penetrates 18-24 inches—more than enough for most structural scanning needs.

Where GPR Has Limitations

Depth Penetration Varies Significantly

GPR's effectiveness drops dramatically in certain conditions:

• Concrete scanning: 18-24 inches
• Underground utility locating: up to 8 feet in ideal conditions
• Highly conductive soils: sometimes just inches

That last point is critical. Clay-heavy soils, salt content, and moisture levels all affect signal penetration. What works perfectly in dry, sandy conditions may fail completely in wet clay.

Soil Conditions Can Make or Break Results

The physics are straightforward: GPR signals attenuate faster in conductive materials. High clay content, saturated soils, and brackish water conditions severely limit penetration depth and data quality. In these environments, you might get clear readings in one area and nothing useful 50 feet away.

Experienced technicians assess site conditions before scanning to set realistic expectations. Sometimes the honest answer is that GPR isn't the right tool for that particular location. That's why Midwest Site Recon uses multiple detection methods to ensure complete coverage.

The Frequency Trade-Off

GPR operates across a wide frequency range (10 MHz to 2.6 GHz), but you can't have everything at once:

• Higher frequencies = better resolution, shallower penetration
• Lower frequencies = deeper penetration, less detail

A 900 MHz antenna will show you exactly where that rebar is in the first foot of concrete. But if you need to find a utility at 6 feet deep, you'll need a lower frequency antenna—and accept that you'll lose some of that fine detail.

There's no magic setting that gives you both maximum depth and maximum resolution.

Interpretation Requires Expertise

GPR doesn't produce a photograph of what's underground. It creates hyperbolic reflections that trained technicians interpret based on signal strength, wave patterns, and material contrasts. The same data can tell very different stories depending on who's reading it.

Depth estimates rely on calculated wave velocities through the material being scanned. Without calibration from known reference points or experienced interpretation, depth readings can be off by significant margins.

This is why certification matters. Professional GPR technicians complete extensive training and field mentorship—far exceeding minimum industry standards. Midwest Site Recon's technicians are certified in Subsurface Utility Engineering (SUE) for maximum accuracy.

GPR vs Other Detection Methods: Comparison

Detection Method	Best Use Cases	Limitations	Typical Depth	MSR Availability
Ground Penetrating Radar (GPR)	Non-metallic utilities (PVC, fiber optic), concrete scanning, comprehensive site surveys	Reduced effectiveness in clay-heavy or wet soils, depth limitations	10-15 ft (ideal conditions), 18-24 in (concrete)	✅ AI-assisted, same-day deliverables
Electromagnetic (EM) Locating	Metallic utilities (water, gas, electrical), long-distance tracing	Cannot detect non-metallic materials	15-20 ft	✅ Available for all projects
Acoustic Detection	Active water/sewer lines, leak detection	Requires active flow or pressure	Variable	✅ Specialized applications
Vacuum Excavation (Potholing)	Physical verification, SUE Quality Level A	Invasive, slower, higher cost per location	As needed	✅ For critical verifications

MSR Recommendation: For maximum reliability, we combine GPR with electromagnetic locating and other complementary technologies. This multi-method approach is standard for SUE projects and ensures nothing gets missed.

When to Use GPR—And When to Combine It With Other Methods

GPR Is Ideal For:

• Pre-excavation utility locating (especially when non-metallic utilities may be present)
• Concrete scanning before coring, cutting, or drilling
• Large-area surveys where speed matters
• Locating features in non-conductive soil conditions
• Archaeological and forensic investigations
• As-built surveys requiring comprehensive documentation

Consider Complementary Technologies When:

• Working in clay-heavy or highly saturated soils
• You need to trace metallic utilities over long distances (EM locating excels here)
• Depths exceed GPR's practical limits for your site conditions
• Maximum accuracy is critical (combining methods reduces uncertainty)
• Working on critical infrastructure projects requiring SUE Quality Level B or A

The most reliable results come from using GPR alongside electromagnetic locating and other complementary technologies. Industry standards like Subsurface Investigation Methodology (SIM) mandate this multi-technology approach because each method catches things the others might miss.

Frequently Asked Questions About Ground Penetrating Radar

How much does GPR utility locating cost?

GPR utility locating costs vary based on site size, project complexity, and turnaround requirements. Residential projects typically range from $500-$1,500, while commercial sites range from $1,500-$5,000+. Midwest Site Recon offers transparent pricing with same-day digital deliverables. Contact us for a free quote specific to your project.

How accurate is ground penetrating radar for utility locating?

Professional-grade GPR operated by certified technicians is typically accurate within 2-4 inches horizontally and 3-6 inches vertically in ideal conditions. When combined with electromagnetic locating and other methods following SUE standards, accuracy rates exceed 99%. Midwest Site Recon uses AI-assisted GPR technology for enhanced accuracy and maintains comprehensive quality control processes.

Can GPR detect all underground utilities?

GPR can detect most utilities including PVC pipes, concrete, metal conduits, fiber optics, and other buried features. However, very deep utilities (>15ft in typical soil), utilities in highly conductive clay soils, or closely spaced utilities may require supplemental detection methods like electromagnetic locating. This is why MSR uses a multi-technology approach for complete coverage.

What are the main strengths of ground penetrating radar?

GPR excels at detecting non-metallic utilities like PVC, concrete, and fiber optic cables that traditional electromagnetic locating cannot find. It provides real-time imaging, works on various surfaces, and is completely non-invasive with no radiation risks. GPR is also highly effective for concrete scanning, identifying rebar, post-tension cables, and voids within 18-24 inches of the surface.

What are the limitations of GPR for utility locating?

GPR has reduced effectiveness in highly conductive soils (clay-heavy areas), depth limitations (typically 10-15 feet in ideal conditions), and requires skilled interpretation by certified technicians. Weather conditions, soil moisture, and surface access can also impact performance. Frequency selection involves trade-offs: higher frequencies provide better resolution but shallower penetration, while lower frequencies penetrate deeper with less detail.

When should I use GPR vs electromagnetic locating?

Use GPR for non-metallic utilities (PVC, fiber optic), concrete scanning, and when precise depth measurement is critical. Use electromagnetic (EM) locating for tracing metallic utilities like water, gas, and electrical lines over long distances. For maximum reliability and completeness, Midwest Site Recon recommends combining both methods—this is standard practice for SUE Quality Level B designations and critical infrastructure projects.

Can GPR find plastic pipes and PVC utilities?

Yes—this is one of GPR's major advantages over EM-only locating methods. GPR effectively detects PVC, HDPE, and other non-metallic pipes that traditional electromagnetic locating cannot find. This makes GPR essential for modern construction sites where plastic water lines, fiber optic conduits, and PVC drainage systems are increasingly common.

How deep can ground penetrating radar see?

Standard GPR typically penetrates 10-15 feet in ideal soil conditions (dry, sandy, low-conductivity soils). Clay-heavy or saturated soils reduce effective depth to 3-8 feet. For concrete scanning, GPR reliably penetrates 18-24 inches. Low-frequency GPR antennas can reach 30+ feet in exceptional conditions but sacrifice resolution. Actual depth capability depends heavily on soil composition, moisture content, and the target being located.

Does GPR work on vertical surfaces like walls and columns?

Yes. GPR effectively scans vertical concrete surfaces including walls, columns, and floor undersides. This makes it ideal for locating rebar, conduit, and other embedded elements before drilling anchor holes, cutting openings, or performing structural modifications. The technology works equally well on horizontal, vertical, and overhead surfaces.

Can GPR determine the exact size and depth of voids?

GPR identifies void locations and boundaries but cannot measure internal void dimensions with precision. It shows you where the void starts and stops laterally, but depth extent requires interpretation based on signal characteristics. For critical applications requiring exact void dimensions, vacuum excavation or drilling may be needed for physical verification.

What areas does Midwest Site Recon serve for GPR services?

Midwest Site Recon provides GPR utility locating, concrete scanning, and SUE services throughout Indiana, Illinois, Michigan, Ohio, Wisconsin, Iowa, Minnesota, and Missouri. We offer same-day service for many locations and maintain multiple field teams for rapid response. View our complete service area or contact us to confirm availability for your project location.

The Bottom Line: Choosing the Right Detection Method

GPR is one of the most powerful tools available for subsurface investigation—but it's not magic. It excels at detecting both metallic and non-metallic targets, works safely without radiation, provides real-time results, and delivers excellent resolution for shallow applications.

Its limitations are equally real: depth penetration depends heavily on soil conditions, there's always a trade-off between resolution and depth, and accurate interpretation requires genuine expertise from certified technicians.

The smartest approach? Use GPR as part of a comprehensive locating strategy rather than relying on any single technology. Understanding both its strengths and limitations helps you get the most value from the scan—and avoid surprises when the excavator starts digging.
